Comprehensive Signage Site Survey Checklist

The Core Signage Site Survey Checklist Items

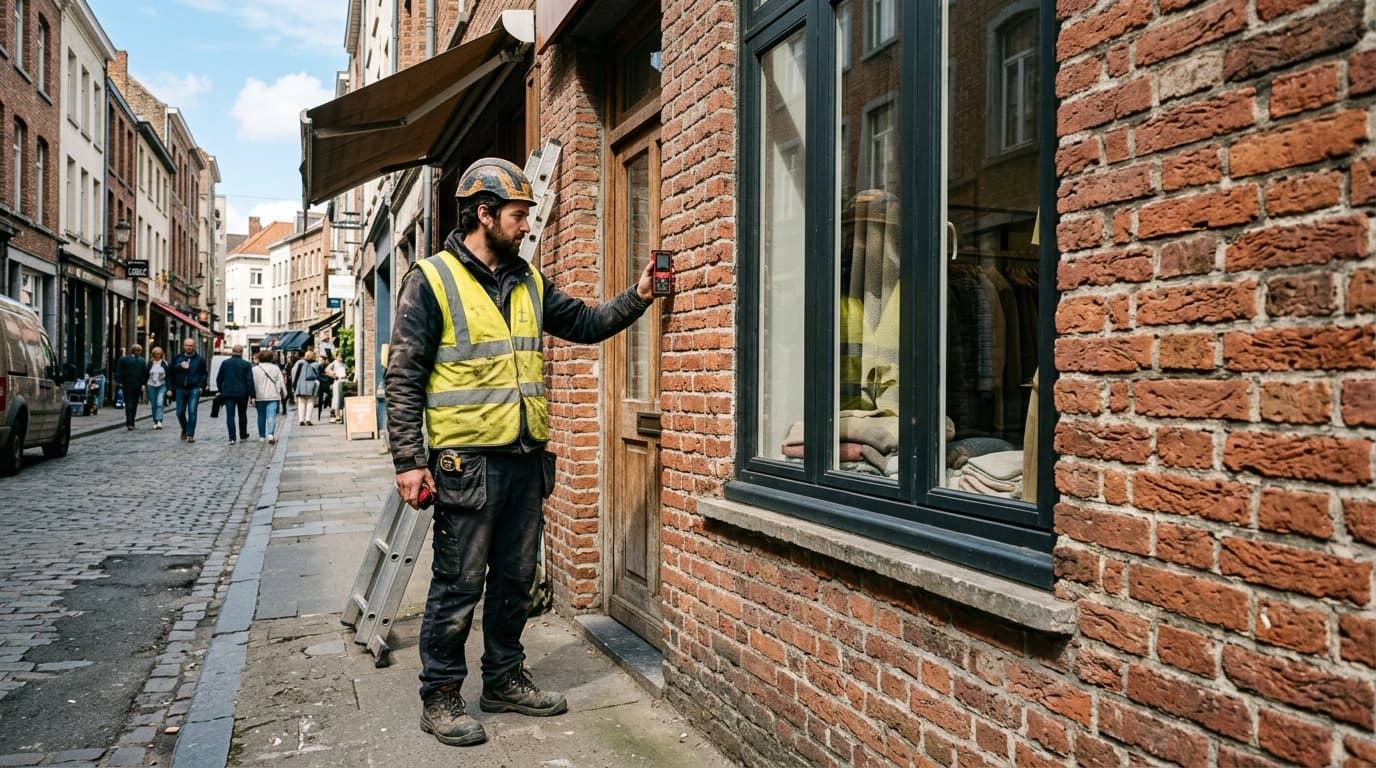

Every site visit begins by measuring the basic physical envelope available for the new installation. Accurate dimensions directly dictate the amount of material required and determine whether the design will pass local planning department review. Professional sign association standards require all technical survey measurements to be recorded at 1/8-inch precision. You must document the total available fascia width, the clear space height, and any architectural features that could interfere with the mounting hardware.

Scaled photography is equally important for the production and sales teams. Taking straight-on photos of the elevation allows your designers to overlay accurate graphics. Angled photos distort the perspective and cause severe scaling errors during the estimating phase. Stand directly in front of the proposed sign location and capture multiple wide and tight shots.

• Total fascia dimensions: Measure the exact width and height of the wall space available.
• Clear space requirements: Note the distance from the ground to the bottom of the proposed sign for ADA and pedestrian clearance.
• Straight-on photography: Capture flat, un-angled photos of the entire building elevation.
• Architectural obstructions: Identify awnings, downspouts, security cameras, or lighting fixtures near the install zone.
• Sightline visibility: Verify the sign will be readable from the main street and parking lot entrances.

Internal Wall Access and Substrates

Most general surveys document the exterior surface, noting whether it is finished with brick, stucco, EIFS, or metal panels. A professional estimator goes deeper to identify the structural components holding the building together. Project managers need to know what lies behind the exterior fascia to determine the correct fasteners and structural backing. Heavy channel letters mounted to light-gauge drywall studs will fail without additional internal blocking.

Gaining access to the wall cavity saves hours of frustration during installation. Surveyors should check for interior drop ceilings, roof hatches, or crawl spaces that provide rear access to the mounting surface. If rear access is impossible, the installation crew must bring specialized toggle bolts or plan for exterior raceway mounting.

• Exterior substrate identification: Record the primary surface material and its total thickness.
• Internal structural support: Locate structural steel columns, beams, or existing plywood backing.
• Cavity access points: Check for removable drop-ceiling tiles or access panels behind the wall.
• Fastener requirements: Document the specific anchor types required for the identified substrate.
• EIFS and foam thickness: Measure the depth of foam over the structural wall to select the correct threaded rods.

Electrical Demarcation and Code Compliance

Illuminated signage requires strict adherence to regional electrical codes. Documenting the power situation defines where the sign installer scope of work ends and the licensed electrician job begins. National Electrical Code Article 600 mandates an accessible disconnect switch within sight of the sign. Surveyors must locate the primary power source and determine the routing path for the new electrical conduit.

Industry standard contracts require the customer or general contractor to deliver a dedicated 20A, 120V or 277V circuit within 6 feet of the sign location. If the power is located further away, the sign company must factor the extra conduit and wiring into the final estimate. Verifying voltage on the first visit prevents production from ordering the wrong power supplies.

• Primary power location: Confirm the presence of an existing electrical circuit near the installation point.
• Distance to junction box: Measure the exact distance from the sign location to the nearest power tie-in.
• Voltage verification: Use a multi-meter to confirm if the circuit provides 120V or 277V power.
• Disconnect switch placement: Identify where the mandatory safety disconnect will be mounted.
• Scope of work boundaries: Clarify if the sign shop or the client electrician is responsible for the final electrical hookup.

Rigging, Logistics, and Site Access

High wall installations and heavy monument signs require specialized lifting equipment. Estimators must account for crane and bucket truck setup parameters before finalizing the project quote. Paying for a daily crane rental is a total waste if the truck cannot safely position itself next to the building. Surveyors must evaluate the parking lot layout, driving lanes, and curbside access points.

Ground conditions directly impact equipment safety. Check the ground bearing capacity to ensure heavy outriggers will not collapse into hollow sidewalks or crack the customer fresh asphalt. Additionally, overhead obstructions present severe safety hazards. Surveyors must measure clearances around overhead power lines to comply with occupational safety regulations.

• Overhead power lines: Measure the distance between high-voltage lines and the required boom truck reach.
• Ground bearing capacity: Verify the parking lot or sidewalk can support the weight of crane outriggers.
• Curb weight limits: Check local ordinances for weight restrictions on the streets immediately surrounding the site.
• Traffic control requirements: Determine if the job requires street closures, pedestrian barricades, or police flagging details.
• Operating hours: Note any property management restrictions regarding acceptable installation times or noise limits.

Existing Sign Removal and Remediation

Replacing an old sign introduces hidden labor and material costs. The field survey must detail the exact condition of the wall hiding behind the existing unit. Removing old raceways, cabinet signs, or individual letters leaves visible holes, conduit penetrations, and mismatched paint colors. Your proposal must explicitly state who is responsible for patching and painting these facade penetrations.

Environmental factors also play a role in removal projects. Paint ghosting occurs when the sun fades the exposed wall around the old letters, leaving a dark silhouette. Sometimes the entire fascia requires repainting before the new sign can go up. Additionally, you must plan for the safe disposal of old fluorescent ballasts and verify if the existing primary wiring is legally safe for reuse.

• Fastener holes and penetrations: Document the number of existing wall holes that require silicone patching.
• Paint ghosting and oxidation: Check for severe color variations on the wall behind the existing logos.
• Wiring condition: Inspect the old electrical whips to determine if they meet current code for reuse.
• Disposal logistics: Plan for the removal and legal disposal of old cabinets, neon glass, and ballasts.
• Remediation scope: Define clearly whether your crew or the general contractor will handle the final wall repainting.

Ground Penetration for Freestanding Signs

Pylon and monument signs require deep concrete foundation work. Digging footings brings strict legal obligations and safety requirements. In the United States, an 811 utility locate call is legally mandated before any ground penetration begins. Project managers must schedule this service 48 to 72 hours in advance of digging or geotechnical core testing to avoid striking buried gas or electrical lines.

Beyond utility lines, the survey must document the surface terrain and property boundaries. Estimators need to know if the soil is solid clay, loose sand, or filled with large rocks, as this changes the auger equipment required. You must also verify property lines and local setback requirements to ensure the sign foundation is poured in a legal location. Codes and requirements vary by jurisdiction, so consult your local planning office for specific depth rules.

• Utility locate scheduling: Mark the exact footing location with white paint and initiate the 811 call.
• Soil condition assessment: Document visible soil types and check for rocky terrain that complicates augering.
• Property lines and setbacks: Measure the distance from the proposed sign base to the street curb and property edge.
• Line of sight obstructions: Verify that landscaping, retaining walls, or neighbor signs will not block the new installation.
• Spoil dirt removal: Determine if excavated dirt can be spread on site or must be hauled away in a dump trailer.

Standardizing Your Survey Workflow

Collecting site data efficiently requires a standardized kit and a repeatable process. A basic physical survey kit should include a laser distance meter, digital angle finder, multi-meter, and a Pantone deck for color matching. Using professional sign estimating software helps estimators turn this raw field data into accurate quotes.

Modern technology allows field representatives to complete the entire sales cycle during the site visit. Using Vuely, a rep can log survey details, capture straight-on photos, and instantly generate a photo-accurate mockup of the sign on the customer actual building. The platform checks the design against the local city sign code, estimates the final price based on your shop rates, and collects a binding signature before the rep even leaves the property.

By finalizing the design and the contract on site, you eliminate the delays caused by endless email revisions. While Vuely is not shop management software, it handles the complex initial sales and survey workflow so your estimators can hand off a perfect, ready-to-build package to the production department. Evaluate your technology stack and consider updating your toolset to protect your margins. For more details on standardizing your sales process, review our pricing and software capabilities.
